Durable 400-3500W multilayer induction cooker circuit board

FOB Reference Price:Get Latest Price
$50.00 - $80.00 / Sets | 100 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 100 101 - 200 201 - 500 >500
Est. Time(days) 9 12 18 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Highway
Model Number:
HW-3.5KW-E Flat
Base Material:
FR-4
Copper Thickness:
1oz
Board Thickness:
1.6mm
Min. Hole Size:
0.20mm
Min. Line Width:
3mi
Min. Line Spacing:
0.003"
Surface Finishing:
HASL
Power:
3500W
Product name:
Induction cooker PCB and spare parts
Material:
Plastic
Technology:
Single Switch
Voltage:
220V
Application:
Induction cooker
Usage:
For induction cooker assembly
Type:
Induction Cooker Parts
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Induction cooker printed circuit board and spare parts package
Antistatic bubble bag for inner packing
Carbon box for outer packing
Port
Guangzhou/Rongqi
Lead Time :
Quantity(Sets) 1 - 100 101 - 200 201 - 500 >500
Est. Time(days) 9 12 18 To be negotiated
Product Description
                                             Specifications of electrical induction cooker circuit board
PCB Model No.
HW-3.5KW-E
Power
3.5KW
PCB Technology
Single switch
PCB Size
250*120*40mm
IGBT
With Infineon IGBT
PCB Standard
CE,RoSH,EMC
Power Level
400-3500KW
Temp Range
60-240℃ (140-464℉)
Glass Size
340*340*4mm
Control Box
Knob+ Button
Coil Protection
Over Heating,Sensor Open or Short Circuit, Open Circuit Protection etc
PCB Protection
Over or Under Voltage,Over Current,Over Heating,Default Phase Protection etc.
IGBT Protection
Over Heating,Over Current,Exception Driven,Sensor short /open circuit Protection etc.

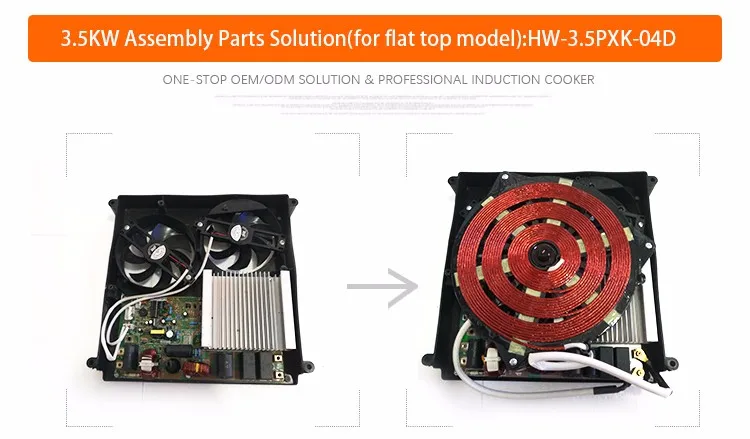

HW-3.5KW-E printed circuit board

Power:3.5KW

Size:250*120*40mm

Model:HW-QP3.5XK-04D

Technology:Single Switch

stable operation

Precise temperature control

Anti-interference ability


Pure Copper Coil

Model:HW-XP016

3500W flat coil

Size: Φ235mm

Inductance:75±3

Fast heating rate

Durable copper wire

Strong inductance value

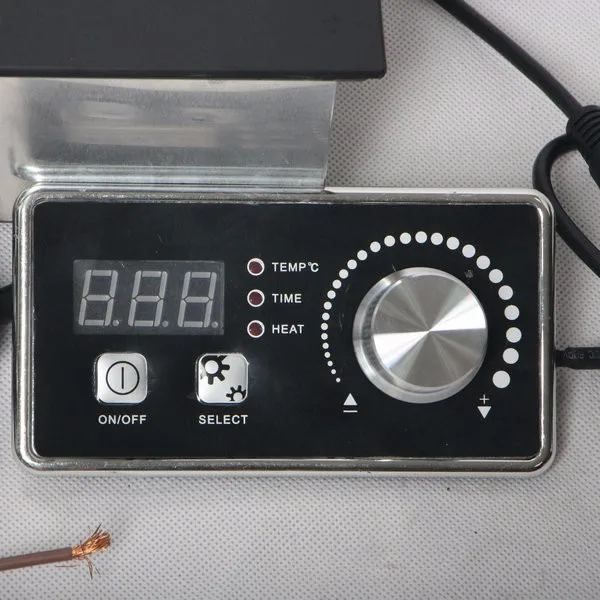

Control box

9 power level
Wattage choice:600-3500W
Temperature choice:60-240℃
Time setting:5-180 minutes
Knob control,easy to use

Exhaust fan

DC 18V

Size: ¢110mm

High exhaust speed

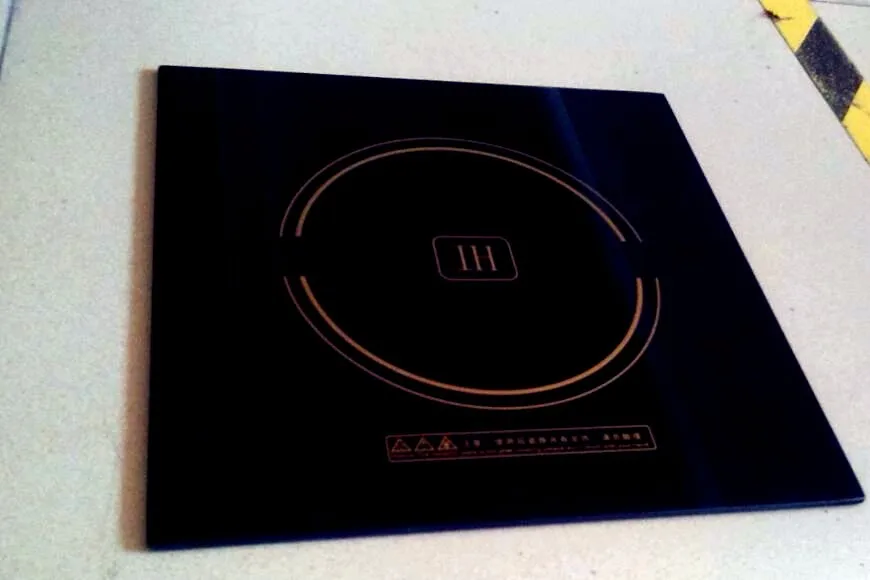

Glass Plate

Size:340*340*4mm
Strong weight capacity
Easy to be clean
No lingering warmth on the plate after cook
OEM logo can be print on the plate

Related Products

HW-QP3.5XK-04D

Built in induction cooker

HW-TP3.5A-01

Desktop induction cooker

HW-TP3.5X-04

Desktop induction cooker

HW-TA3.5CM-01

Desktop slide control induction cooker

Comparision
Furnace
Traditional oil
burner stove
Environmental oil burner stove
Gas stove
Induction cooker
Exhaust
Chimney
Chimney
Directly exhaust
Zero emissions
Thermal efficiency
                                                      20-45%
More than 90%
Pollutants
Black smoke, sulfide
Black smoke, sulfide
Carbon dioxide
No
Environment Equipment
Water film
filtration system
No need
No need
No need
Noise
Fan noise+
sound of the fire
Fan noise+
sound of the fire
Fan noise+
sound of the fire
Ignore
Use Safety
Easy explode with incorrect operation
Safe
Easy explode with incorrect operation
Muti-safety
protection
Failure
Low
More
Low
Extremely Low
Stove temp
during cooking
Burning hot
Burning hot
Burning hot
Tepidity
Smoke
                                                      A lot
Low
User comfort
                                       Sweaty,not good for health
Safe,noiseless
Health
      Over-high oil temperature,Destroy nutrition of the food
Safe and health
Warranty
Inner supports will be broken by corrosion and heating in 3-4 years
Surface will be black by fire burn
The warranty is only 1 year
Waterproof
Oil resistant
Anti-corrosion
Anti-insects
2 year warranty

Our Company

Guangdong Highway Electronic Technology Co.,Ltd is the leader in electromagnetic induction cooker solutions area and located in appliances kingdom of China - Shunde District, Guangdong Province

Our R&D teams are including 70 engineers. we provide electromagnetic solutions for Midea, Joyoung,Better, TCL, Chigo, Homa, RileosiP, JARI,Sdyn etc more than 200 domestic&overseas well known manufacturers.

FAQ

Q 1: Can sample be provided?
A1.Sample is available. As international trade rule, all customers must pay for the shipping cost and sample price.

After you place official order, sample cost will return to you.

Q 2. What is the MOQ of your products?
A2.Below 5000W model, MOQ is 100pcs.
      More than 8000W model, MOQ is 10pcs.

Q3: We’d like to print our Logo on the product, is it ok for you?
A3. : We supply OEM service which including logo printing, carton design.

Q4: How about the delivery time?
A4: For sample standard order, the delivery time is about 3-5 days.

       For ODM product sample, delivery time is about 7-15 days.

       For official order, it is about need 20-25 days.

Q5: What is your payment terms?
A5: We adopt T/T or western union payment. Other payment terms also can be considered.

Q6: How long is the warranty?
A6.For commercial induction cooker, we supply two years warranty.

Why Choose Us

A.15 years experience in induction cooker solutions.

B.70 professional engineers in R&D department.

C.Direct manufacturer,ensure the good quality and competitive price.

D.2 Years life Warranty for finished product and 1 Year life Warranty for spare parts.

E.100% QC inspection before shipment

F.We are Alibaba Verified Gold supplier for 5 years.


Highway research and produce:

PCB and Spare Parts of:3.5KW/5KW/8KW Single Burner/Multi Burner Induction Cooker

PCB and Spare Parts of:8KW/10KW/12KW/15KW/20KW/25KW/30KW/50KW Commercial Induction Cooker


For more information,please feel free to contact us
Tel:+86 757 2981 2765
